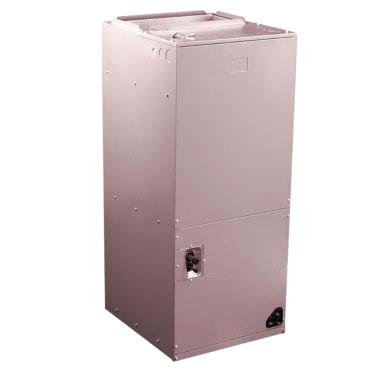

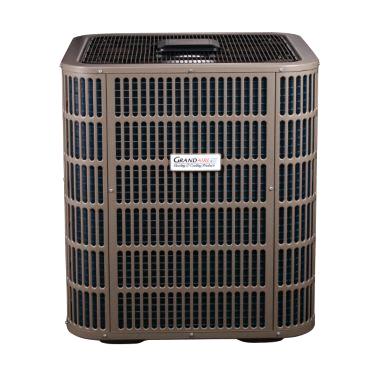

Brand: Grandaire Save Listing| Email Listing | Share Product Name: GRANDAIRE WCH824364MKA1 WATPM244A1 - 2 Ton PINNACLE SEER 18 Heat Pump Mitsubishi Compressor Item#: WCH824364MKA1 WATPM244A1 Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required
Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - WCH824364MKA1 WATPM244A1 Standard Features: R-410A chlorine-free refrigerant Load 25%-110% Intelligent oil return technology Inverter Driven Rotary Compressor Crankcase Heater Standard Compressor Sound Blanket Multiple System Protection: 1. High pressure switch and low pressure transducer 2. Compressor Liquid return protection 3. Compressor high or low compression ratio protection 4. Compressor high temperature Protection 5. High / low voltage Protection and Over Current Protection 6. IPM and electronic control board high temperature Protection AHRI certified; ETL listed Cabinet Features: Unique sound control top design Baked-on powder paint finish Wind Load compliant per Florida Building Code - 2010 Wire fan discharge grille Steel louver coil guard WEIGHT 157.0000 Pound (lb.) WIDTH 29.1250 Inches (in) HEIGHT 24.9375 Inches (in) COUNTRY OF ORIGIN CHN UPC OR BARCODE N/A HAZARDOUS MATERIAL No EPA CERT REQUIRED No LENGTH 29.1250 Inches (in) BRAND GrandAire EQUIPMENT TYPE Heat Pump TONNAGE 3 SEER 18 EER 13 MAXIMUM SEER 18.5 REFRIGERANT R-410a HSPF 9 CFM 2950 COOLING CAPACITY 34600 HEATING CAPACITY 33600 VOLTAGE 208-230 VAC FULL LOAD AMPS 19.5 PHASE Single CYCLE/HERTZ 60 RATED CURRENT AMPS 29.7 CIRCUIT BREAKER - MIN AMPS 25 CIRCUIT BREAKER - MAX AMPS 40 MINIMUM CIRCUIT AMPS 36.5 MAXIMUM FUSE SIZE 40 CONDENSER MOTOR TYPE AC motor CONDENSER MOTOR HP 1/6 HP CONDENSER MOTOR RPM 825 CONDENSER MOTOR SPEEDS 2 RATED LOAD AMPS 1 LOCKED ROTOR AMPS 45 SUCTION LINE SIZE 3/4" LIQUID LINE SIZE 3/8 CERTIFICATIONS AHRI & ETL COLOR Gray COMPRESSOR Mitsubishi DC Variable Speed Rotary SOUND LEVEL (DBA) 50-77 WARRANTY OFFERED 5 years limited warranty on parts ENERGY STAR RATED No ETL CERTIFIED Yes ETL LISTED Yes LEED CERTIFIED No UL LISTED No UL RECOGNIZED No Standard Air Handler Features: Multi-Speed ECM Blower Motor Factory Installed TXV Metering Multiposition Installation-upflow or horizontal right standard. Field convertible to horizontal left or downflow. Multiple electrical entry locations Field installed heater kits 5,8,10,15,20KW available Dual Front Panel Design for ease of maintenance Blower and coil easy slide out design for ease of maintenance. Fully insulated cabinet design Horizontal and vertical condensate drain pans standard Condensate drain pan is polymer with UVC inhibitor Primary and secondary condensate drain fittings Factory sealed cabinet certified to achieve 2% or less leakage rate at 1.0 inch water column Intergrated filter rack with tool-less door access AHRI and ETL listed WEIGHT 119.0000 Pound (lb.) WIDTH 19.6250 Inches (in) HEIGHT 46.5000 Inches (in) COUNTRY OF ORIGIN CHN UPC OR BARCODE N/A HAZARDOUS MATERIAL No EPA CERT REQUIRED No LENGTH 21.6250 Inches (in) BRAND GrandAire EQUIPMENT TYPE Heat Pump TONNAGE 2 STAGE Three SEER 18 EER 13 MAXIMUM SEER 18.5 REFRIGERANT R-410a CFM 800 CFM COOLING 800 CFM HEATING 800 COOLING CAPACITY 24000 HEATING CAPACITY 24000 VOLTAGE 208-230 VAC PHASE Single CYCLE/HERTZ 60 RATED CURRENT AMPS 0.8(45Pa,speed 3) CIRCUIT BREAKER - MIN AMPS 15 CIRCUIT BREAKER - MAX AMPS 15 MINIMUM CIRCUIT AMPS 3.5 MAXIMUM FUSE SIZE 15 BLOWER MOTOR TYPE Centrifugal BLOWER MOTOR HP 1/3 HP BLOWER MOTOR RPM 1050 BLOWER MOTOR SPEEDS 5 FILTER SIZE 18" x 20" INCLUDES FILTER RACK Yes METERING DEVICE TXV RATED LOAD AMPS 2.8 DRAIN CONNECTION SIZE 3/4'' NPT SUCTION LINE FITTING 3/4" SUCTION LINE SIZE '3/4" ELECTRIC HEAT RANGE [KW] 5/8/10 LIQUID LINE FITTING 3/8" LIQUID LINE SIZE 3/8 BLOWER WHEEL 10 5/8" CERTIFICATIONS AHRI & ETL COLOR Gray SOUND LEVEL (DBA) 62 WARRANTY OFFERED 5 years limited warranty on parts ENERGY STAR RATED No ETL CERTIFIED Yes ETL LISTED Yes LEED CERTIFIED No UL LISTED No UL RECOGNIZED No Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 6 + 2 Send Shop for Grandaire and browse manuals and details of WCH824364MKA1 WATPM244A1 Air Duct Cleaning Springfield, MO HVAC Repair Birmingham, AL Vent Cleaning Lubbock, TX HVAC Repair Cedar Hill, TX Air Conditioning Companies Nampa, ID Electricians Near Me Eugene, OR Top
