Product Specifications

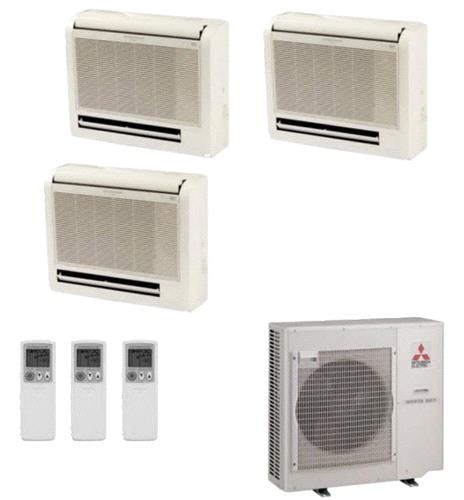

| Mitsubishi MXZ-3B30/MFZ-KA09x3 Unique System Specifications: |
| Cooling Power Consumption, (W): |
3120 |
| Heating Power Consumption, (W): |
2150 |
| Cooling Capacity, (BTU): |
28400 |
| Heating Capacity, (BTU): |
28600 |
| SEER: |
17.5 |
| HSPF (V): |
7.2 |
| COP: |
3.9 |
| Total System Weight, (lbs): |
246 |
| Mitsubishi MXZ-3B30NA-1 Specifications: |
| Capacity, (BTU): |
30000 |
| Cooling Power Consumption, (W): |
3120 |
| Heating Power Consumption, (W): |
2150 |
| Voltage: |
208 / 230 |
| Fuse Size, (A): |
20 |
| Minimum Amperage: |
18 |
| SEER: |
17.5 |
| Compressor RLA: |
11 |
| Compressor LRA: |
15 |
| Refrigerant Control: |
Linear Expansion Valve |
| Refrigerant Type: |
R410A |
| Refrigerant Charge, (lbs, oz): |
7, 11 |
| Sound Output, Speed Specific, (dB): |
49 |
| Width, (in): |
35.4375 |
| Depth, (in): |
12.59375 |
| Height, (in): |
35.4375 |
| Weight, (lbs): |
150 |
| Parts Warranty: |
5 Years |
| Compressor Warranty: |
7 Years |
| Mitsubishi MFZ-KA09NA Specifications: |
| Capacity, (BTU): |
9000 |
| Voltage: |
208 / 230 |
| Fuse Size, (A): |
15 |
| Airflow at Cooling, Speed Specific, Dry, (CFM): |
314-251-205-169 |
| Airflow at Cooling, Speed Specific, Wet, (CFM): |
303-241-197-163 |
| Airflow at Heating, Speed Specific, Dry, (CFM): |
332-219-198-177 |
| Sound Output, Speed Specific, (dB): |
40-35-30-25 |
| Width, (in): |
27.5625 |
| Depth, (in): |
7.875 |
| Height, (in): |
23.625 |
| Weight, (lbs): |
32 |
| Parts Warranty: |
5 Years | |
