Performance:
Indoor Unit Model No: FHQ36MVJU
Outdoor Unit Model No: RZR36PVJU
Rated Cooling Capacity (Btu/hr): 36000
Sensible Capacity (Btu/hr): 25100
Max/Min Cooling Capacity (Btu/hr / kW):d atabook/databook
Cooling Input Power (kW): 3.761
SEER: 14
Rated Heating Capacity (Btu/hr): N/A
Max/Min Heating Capacity (Btu/hr / kW)d: a tabook/databook
Heating Input Power (kW): N/A
Heating COP (Btu/hr / Btu/hr): N/A
HSPF: N/A

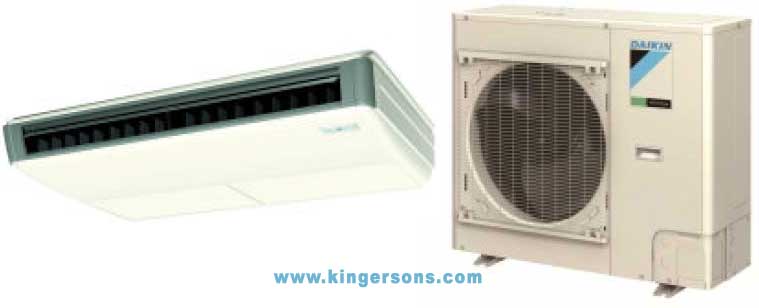

Indoor Unit Type: Ceiling Suspended
Condensing Unit Type: SkyAir Cool Only
Indoor: 80°F DB/67°F WB
Rated Cooling
Outdoor: 95°F DB/75°F WB
Conditions
Indoor: N/A
Rated Heating
Outdoor: N/A
Conditions
Rated Piping Length(ft) 25
Rated Height Separation(ft) 0

Indoor Unit FHQ36MVJU Details:
Power Supply (V/Hz/Ph:) 208-230/60/1ph
Power Supply Connections: L1, L2, Ground
Min Circuit Amps MCA (A): 1.4
Max Overcurrent Amps MFA (A): 15
Dimensions (HxWxD): 7-11/16x62-5/8x26-3/4
Panel (HxWxD): N/A
Net Weight (lbs): 90
Weight with Panel (lbs):
Airflow Rate (CFM wet coil) 830//670
Moisture Removal (pt/h):
Gas Pipe Connection (inch): 5/8
Liquid Pipe Connection (inch): 3/8
Condensate Connection (inch): 1
Sound Pressure Level (dBA): 46
Sound Power Level (dBA):
Static Pressure Rated/Max (inWg) 0 / 0/0

Condenser Unit RZR36PVJU Details:
Power Supply (V/Hz/Ph): 208-230/60/1ph
Power Supply Connections: L1, L2, Ground
Min. Circuit Amps MCA (A): 27
Max. Overcurrent Amps MFA (A): 30
Max. Starting Current MSC(A):
Rated Load Amps RLA (A): 18.6
Dimensions (HxWxD): 52-15/16x35-7/16x12-5/8
Net Weight (lbs): 283
Compressor Type: Inverter
Capacity Control Range (%): 25 - 100
Airflow Rate (CFM): 3740
Gas Pipe Connection (inch): 5/8
Liquid Pipe Connection (inch): 3/8
Sound Pressure Level (dBA): 58
Sound Power Level (dBA):
