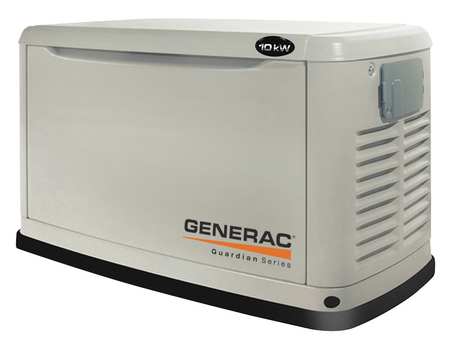

Product Name: GENERAC Standby Generator 10 LP/ 9NG kW

Item#: 2ZMG5
Availability: Discontinued, Please Email For Future Stock Availability.
Choose QTY:
watch make

Product Details - 2ZMG5



Item
Automatic Standby Generators
Type
Air-Cooled
kW
10 LP/9 NG
kVA Rating
10 LP/9 NG
Voltage
120/240
Amps @ 120/240V, 1 Phase
LP 83.3/41.6 (NG 75/37.5)
Phase
1
Hz
60
Fuel
Natural Gas/LP Vapor
Engine RPM
3600
Engine Size
530cc
Length (In.)
48
Height (In.)
29
Width (In.)
25
Fuel NPT Pipe Connection Sz.
3/4
NG Load Consumption (Cu.-Ft./Hr.)
156
Propane Load Consumption (Cu.-Ft./Hr.)
70
Propane Load Consumption (GPH)
1.93
Min. Gas Pressure @ Generator (In WC)
10-12/5-7
Engine Brand
Generac
Engine (Cooling)
Air
Engine (Block Heater)
Optional
Automatic Volts Regulation
Yes
Battery Requirements (Volts)
12
Battery Requirements Min. Amp Hr.
525
Battery Requirements Group
26R
12VDC Battery Charger
Yes
Fault Indicator Lights
Yes
Repeat of Exercise Cycle
Weekly
Low Coolant Level
Yes
High Temp.
Yes
Low Oil Pressure
Yes
Over Crank Protection
Yes
Over Speed
Yes
Circuit Breaker
Included
Main Circuit Breaker
Included
Power Factor
1.0
Run Time Hour Meter
Yes
Sound Level dBA
63
Inlet
3/4"
Includes
1 Ft Flexible Fuel Line Connector And Composite Mounting Pad For Easy Installation
Function
Standby Power
Housing
Steel
Application
All Standby Power Applications
Installation
Requires Local Permits For Gas Piping, Concrete Foundation, Electrical Inspection And Approval
Standards
UL, CSA, NEMA, EGSA
Agency Compliance
UL cUL
  • Air- and Liquid-Cooled Automatic Standby Generators
  • Feature mainline circuit breaker and solid-state, frequency-compensated voltage regulation. All input connections are in a single area. Include 2 amp static battery charger, battery rack for 12V battery, and built-in 7-day exerciser. Group 26 battery required (not included). Require local permits for gas piping, concrete foundation, and electrical inspection.
  • Min. battery requirement: 525 CCA
  • For residential or commercial applications
  • Run on natural or LP gas
  • Require RTS transfer switch (sold separately)
  • Air-Cooled
  • Include 1-ft. flexible fuel line connector and composite mounting pad for easy installation. Electrostatically-applied powder paint. Models equipped with aluminum housing are designed to withstand highly-corrosive environments.
  • Generac OHVI® industrial engine
  • True Power Technology™ for smooth, consistent power
  • Protect priority circuits or the entire panel
